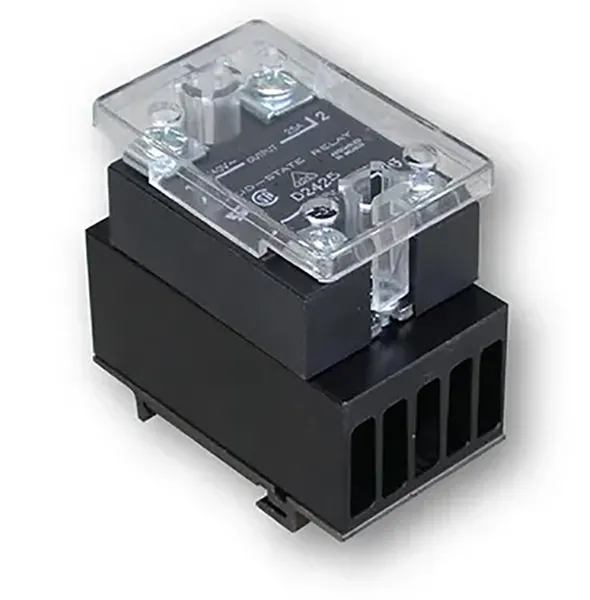

S Series 25A DIN Mount Power Controllers

S Series 25A DIN Mount Power Controllers

Single-Phase Solid State Relay / Heat Sink Assemblies

• DIN mount solid state relay / heat sink assembly
• Ratings up-to 25 amps @ 24-660Vac in a 40°C ambient
• 3-32Vdc / 4-32Vdc, or 90-280Vac input/control voltage
• Compact, thermally efficient heat sink to maximize overall product life expectancy
• Removable IP20 touch-safe cover
• Epoxy-free design eliminates internal stress and enhances life expectancy
• Direct copper bonding (DCB) substrate for superior thermal performance
• MTBF > 7 million hours (>800 years)
• Agency approvals; UL, CSA, VDE/TUV, and CE
