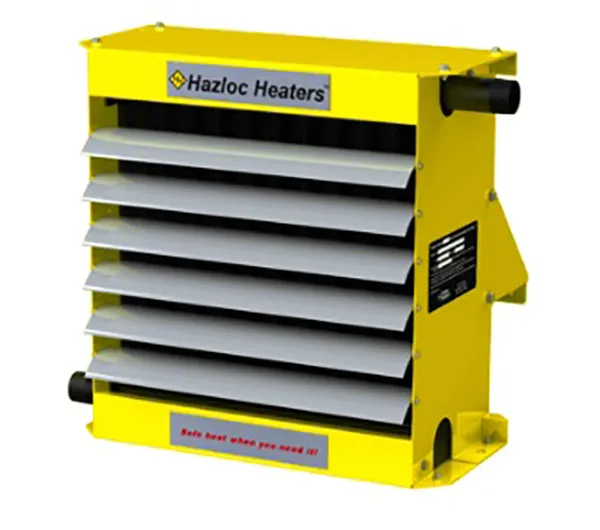

HHP2 – Hydronic High Performance Heater
HHP2 – Hydronic High Performance Heater
Model: HHP2
- Available in Horizontal or Vertical Projection models!
- Available with General Purpose or Ex-proof motors
- Suitable for pressures up to 450 psig (3103 kPa)
- Contact us for details!
Our Best Performer! The HHP2 series offers you the highest pressure rating, horizontal and vertical projection types, multiple discharge types, and the most connection type choices of all our hydronic heater models. It is designed for the most rugged industrial applications in steam, hot water, glycol or other fluid circulating heating systems. The HHP2 series is designed for pressures and temperatures up to 450 psi and 550° F respectively. HHP2 heaters include our PerformaCore™ high-performance heat-exchanger cores that are available in 5/8 in. O.D. 16-gauge (0.065 in.) fin tube with single-pass (for steam or fluids and multi-pass configurations (for fluids only) to meet your specific requirements. HHP2 heaters meet ASME requirements with a National CRN.
HHP2 heaters are suitable for a wide variety of heating fluids and are perfect for steam, hot water, or glycol applications. They are also used with other non-lethal or non-poisonous fluids (as defined by ASME) for both space heating and liquid cooling applications that include but are not limited to hot-oil heaters, lube-oil coolers, product process coolers, pumpseal coolers, etc. They are also available with either General Purpose or Explosion-proof electric motors.
Rugged design, but easily maintained!
All HHP2 heaters are designed for industrial applications with all features being heavy-duty to meet your most demanding environments and long-life expectations. Even with heavy-gauge steel construction used throughout the heater it does not inhibit maintenance of the product since all cabinet panels are easily removed.
Hazloc Heaters™ has developed a web-based heater sizing and selection program that will assist you with estimating your building’s heating load and in selecting the right HUH2 series of heater for your application. Our software computes performance parameters under a diverse range of operating conditions.
