Hawker Electronics Ltd

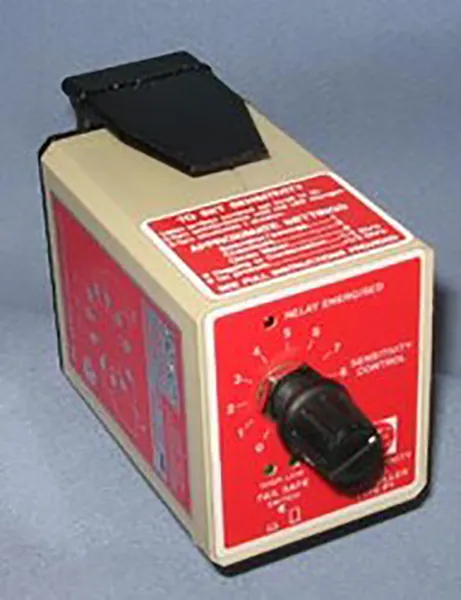

P4 Plug in Level Controller

Plug in (via DIN base) level controller with close switching differential suitable for the majority of applications. Fully adjustable sensitivity between 100 ohms to 18,000 ohms. Switch selectable fail to safe operation with LED indication. Two sets of volt free changeover contacts with LED for relay operation and also a power on LED. Moulded retaining clip for secure fixing of the unit to the DIN base. High sensitivity version available to 800,000 ohms. Supply voltage 110, 230 or 24v AC.

P3 version with 8 pin connection having one set of volt free contacts available

• Suitable for a wide range of Conductive liquids e.g. Sewage, Water, Acids etc
• Precise level detection with no 'Dead Band'
• Protection against dry running
• Prevents pump overrun, reducing operating costs
• Ignores electrode fouling
• Simple low cost installation
• Wide selection of electrodes and mounting accessories
• ATEX Approved (hazardous area) (P8/IS)
