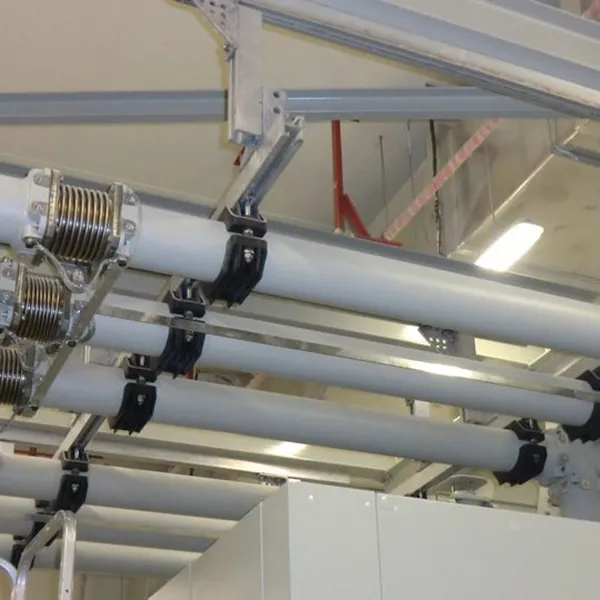

Busbar system - GASLINK®

Busbar system - GASLINK®

• Modular and compact desing
• Protection against electrical shock hazards
• Self-recombinating gas insulation
• No aging effects on insulating material

MGC Moser-Glaser has developed a totally enclosed medium voltage SF6 gas insulated busbar system for connections between GIS - switchgears and between GIS and transformers.

The copper conductors are centered with special high voltage epoxy insulators inside the outer aluminum protection tubes. A separate control panel allows an accurate pressure control of the GASLINK® busbar system. The excellent sealing between the compartments guarantee a maximum leakage rate of no more than 0,5% per year.

High quality DURESCA® bushings are being used for the connections to transformers, coils, capacitors and other apparatus.
