Hasko Inc.

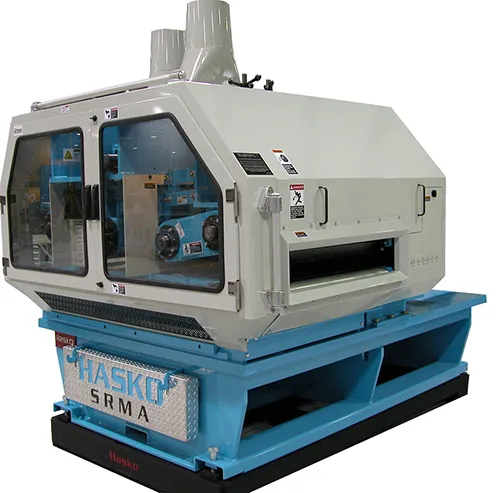

SRMA Gang Rip with Shifting Saw

The new Hasko SRMA ShiftMaster Gang Rip is a Heavy Duty, High-Speed Roll Feed Shifting Saw Gang Rip having approximately 18.75″ of usable saw area. A wide range of saw solutions can be obtained via the use of a Hydraulic Saw Positioning System. Saw solutions are determined based on customer specifications and inputs from Board Scanning Systems.

The standard machine’s 3″ diameter double key arbor is powered by a 125 H.P. 3450 R.P.M. direct-coupled motor. A “Quick set” Hydro-sleeve outboard bearing assembly provides support at end of arbor. Arbor braking is achieved through the use of an air actuated disc and dual caliper braking system.

Applications

Designed for high-volume ripping of strip and plank flooring, truck flooring, lineal moulding, frame stock, dimension stock, stacking sticks and more, the SRMA Shifting Saw Gang Rip is good for kiln-dried hardwoods and woods of all species.
