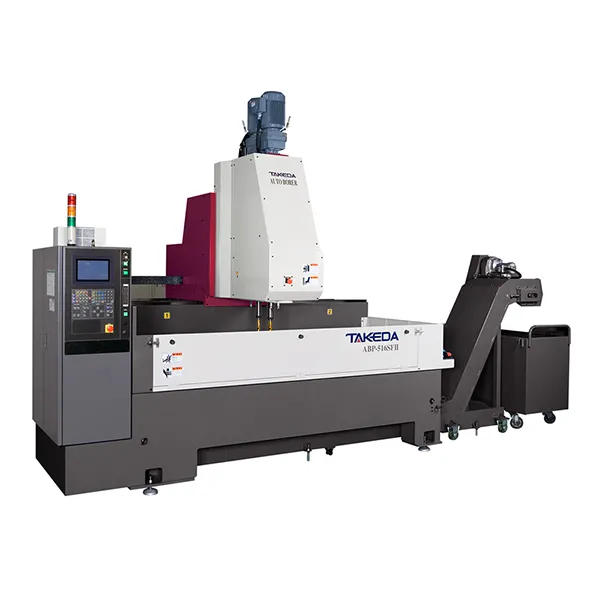

Splice Drill Machine ABP516SF2

Splice Drill Machine ABP516SF2

Two-shaft type

Automatic borer

・Two-shaft drilling machine for spliced plates

・Independent control of the drilling shaft

・Chip conveyor is equipped as standard.

・Stable operation of the main shaft due to a high accuracy inverter

Processing capacity

Bore diameter (mm) φ14.5〜φ26.5

Plate thickness (mm) 6〜100 (Piled processing is possible.)

Work dimensions

1 plane (mm) 450×1,600(516 type)

2 planes (mm) 200×1,600 / 450×750(516 type)

4 planes (mm) 200×750(516 type)
