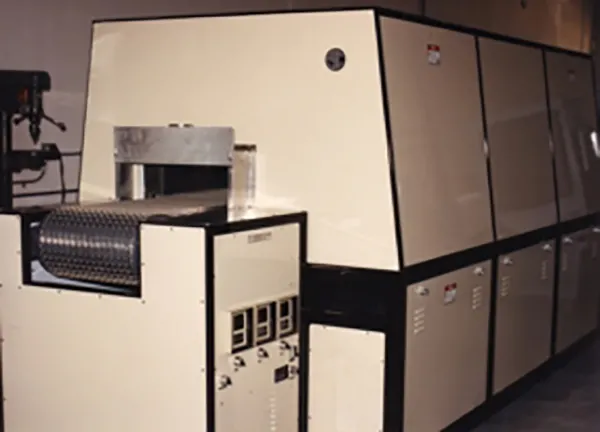

Carsten Ovens

Carsten Ovens

Continuous infrared ovens offers a variety of designs for low-temperature heat treating of “green” ceramic tape and parts, ink drying, epoxy curing, glass sealing, and solder fusion, are offered. These Infrared Ovens are designed with either Teflon/fiberglass or stainless steel transport belts, depending on the temperature requirements. Nominal belt widths are 9 inches and 12 inches, and come in oven lengths up to 5 feet long. For continuous binder removal from tape cast, pressed or extruded ceramic parts, the Burn-Out Oven is an attractive alternative to batch ovens. Product is carried on an endless stainless steel belt through multiple electrically heated zones with stainless steel internal surfaces. Forced-air recirculation systems with individual zone temperature control assure safe, uniform binder removal. Two standard models are offered:

• 3-Zone – 18 Inch Wide Belt by 9 Foot Heated Length
• 6-Zone – 36 Inch Wide Belt by 13 Foot Heated Length

Temperature capability up to 450°C is available. All units include a 4 foot entrance loading station and a 4 foot exit unloading station. A closed loop return system is available as well. Call Harrop Industries at 614-231-3621 for custom tape casting systems.
