Micro Encoder

Super compact incremental encoders.

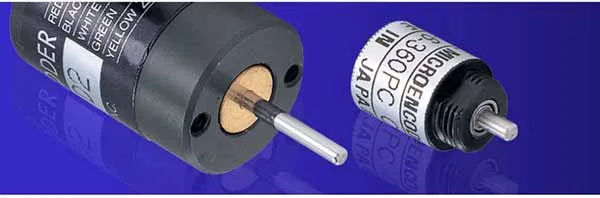

Available in two sizes: the micro model and the ultra-micro model, these high resolution incremental encoders are remarkably compact.

The ultra-micro model

MES-6

• Dimensions ø7.5 x 10.5mm , Incremental encoder 360 line count
• Output phases: A, B, Z
• Square wave open collector output

The micro model

MES-9 (Single shaft)

MEH-9 (Hollow shaft)

• Dimensions ø13 x 20mm , Incr
