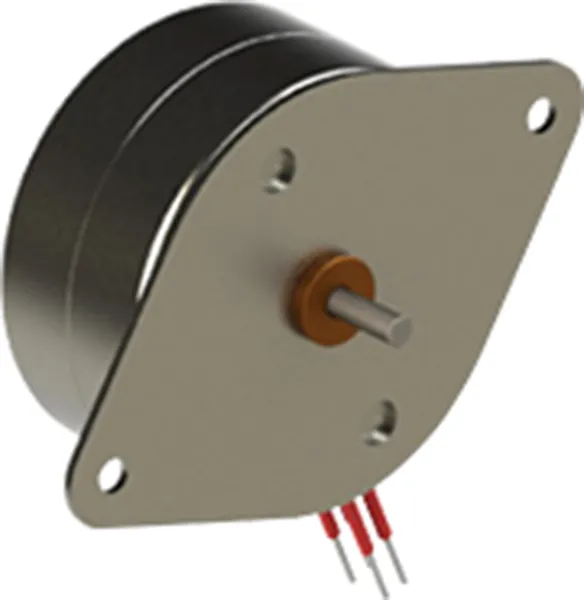

Series 119-1 - Size 19 Step Motor

The series 119-1 (1.9" diameter) permanent magnet step motor is available in 7.5 degree or 15 degree step angles and can be wound for bipolar or unipolar drives. Motors that are wound for bipolar drives can be ran from an AC voltage source using a capacitor to create a phase shift in the line voltage. This method creates a simple, low cost reversing drive. Hansen motors can be custom wound for any voltage up to 240V. The series 119 stepper is also available attached to a Hansen pear shaped gearbox with virtually an unlimited number of gear ratios to choose from.
