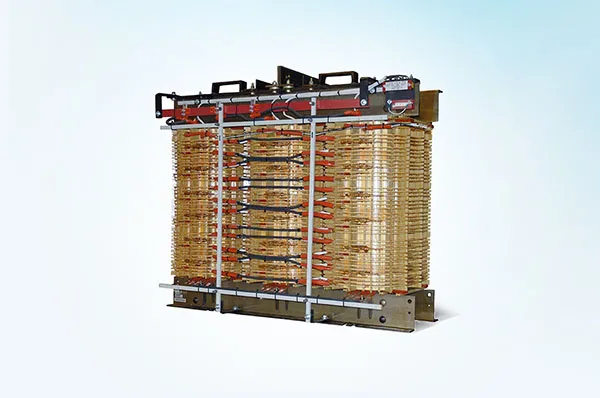

Multi-Pulse Transformers

Multi-Pulse transformers are designed specifically for inherent harmonics, voltage distortion and other unique characteristics associated with drive systems. They provide required supply voltage with the desired phase angle between secondary voltages for VFD systems/converters. Oil filled and dry-type options are available.

• Voltage up to 25kV
• Up to 48 pulse designs
• Designed to specific system requirements
• 220 degree C insulation system
• Comply with IEC 60076-11; IEC 61378; IEE C 57, 18, 10, IEEE C57, 110
