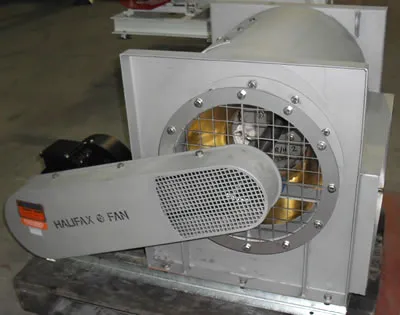

DIDW CENTRIFUGAL FANS

DIDW CENTRIFUGAL FANS

(DOUBLE INLET DOUBLE WIDTH FANS)

Double Inlet Double Width Fans give the same pressure rise but double the flow of a single inlet single width fan.

DIDW Centrifugal Fans are fans that are double the width of a conventional fan, they are essentially 2 fan sets back to back with the adjoining case wall removed. This has the advantage of a smaller overall footprint and only one motor is required.

The performance is quite simple: a DIDW Fan gives the same pressure rise but double the flow of a single inlet single width (SISW) fan.

DIDW fans are conventionally used in heating and ventilation however Halifax Fan uses the DIDW’s generic design; couple it with our build quality and offer heavy duty industrial versions. These can be used in many applications where a large volume of air is required against a low to medium pressure.

DIDW CENTRIFUGAL FAN VARIANTS AVAILABLE:

(This is fairly open ended as Halifax Fan design and build to order with customer consultation)

• Carbon/Stainless steels construction

• Clean air or moderate dust/ash allowable where design allows

• Backward curved or straight impeller blades

• Temperatures in excess of 100°C where design allows

• Direct drive or belt drive.

• Various handings/orientations

• Open inlets or inlet boxes

• ATEX

• Damper or VSD controlable

DIDW CENTRIFUGAL FAN KEY PRODUCT BENEFITS:

• High efficiency

• Lower noise

• Smaller foot-print than 2 stand-alone fans

• Only one motor required
