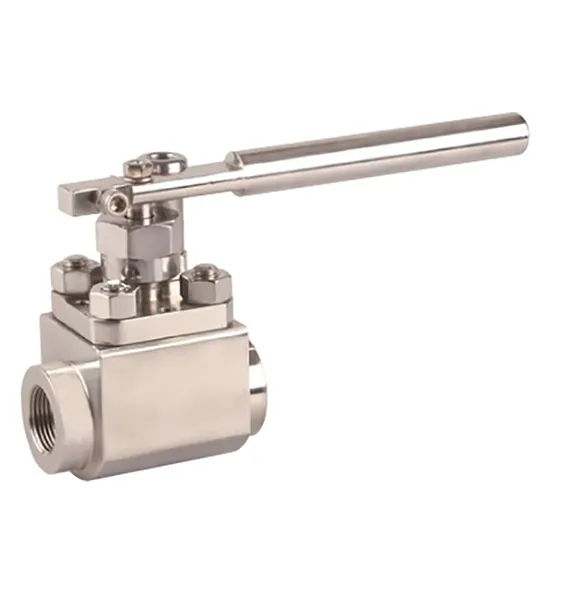

Lowe Valves-Metal to Metal

Lowe Valves-Metal to Metal

Basic Design: ASME B16.34Sizes: 1/4″-2″ Full Bore & Regular BorePressures: ANSI Class 150-900Materials: Carbon Steel, Stainless Steel & Exotic AlloysEnds: RF, NPT, SW, BW, RTJFire Safe Certified: API 607 4th EditionSIL 3 CertifiedNACE

Features

• One Piece Body & Top Entry
• Rotary, Quarter-Turn Valve
• Antistatic Device
• Locking Device
• Blowout Proof Stem
• Live Loaded  & Non-live Loaded Metal Seats
• Bi Directional and Uni Directional
• 100% Bubble Tight Shut-Off
• High Temperature Applications

Options

• Bare Stem, Lever, and Oval Handle
• Fully Automated
• Steam Jacketing
