GOW-MAC Instrument Co.

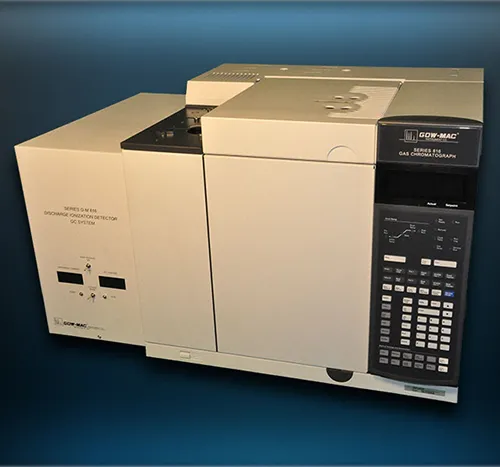

High Performance Gas Chromatograph

FEATURES

Readily adaptable, the GM 816 is an essential tool for research and quality control in a broad range of industries and specialty applications.

• Custom engineered to fit industry-specific applications

• Triple detector capability (one must be a TCD)

• Corrosion resistant flow systems (optional)

• Supports 10 columns/8 automated valves in single application

• Programming ramps/plateaus: 20/21; negative ramps allowed

• Softkey keypad with four line alphanumeric display

• Six ramp oven temperature programming control

• Contact-sensitive on-line HELP

• Full EPC for all inlets & detectors

• Up to six EPC modules installed, controlling of up to 16 channels of EPC

• Atmospheric pressure & temperature compensation

• Independent heated zones (not including oven): 2 inlets, 2 detectors, 2 auxiliary)

• Clock-time programming initiates events (on/off, method start, etc) at future date & time; Eco-friendly Sleep/Wake Mode

• 550 timed events

• Four 24 V valve drivers

• Two 24 V low power relays

• Two 48 V contacts for external event control

• Power failure memory protection

• Data Communications: LAN, dual channel analog output (1 mV, 1 V, 10 V), remote start/stop, storage of 10 methods, serial port interface for remote advisor or optional bar code reader, remote

• Integrated early maintenance counters

• Compatible with any data management system

• Power: 120-240 V, 50-60 Hz
