GEORATOR CORPORATION

GEORATOR CORPORATION

645 Lester Doss Road. Warrior, AL 35180

60-50-400 HZ CONVERSION TO 500 KVA

60-50-400 HZ CONVERSION TO 500 KVA

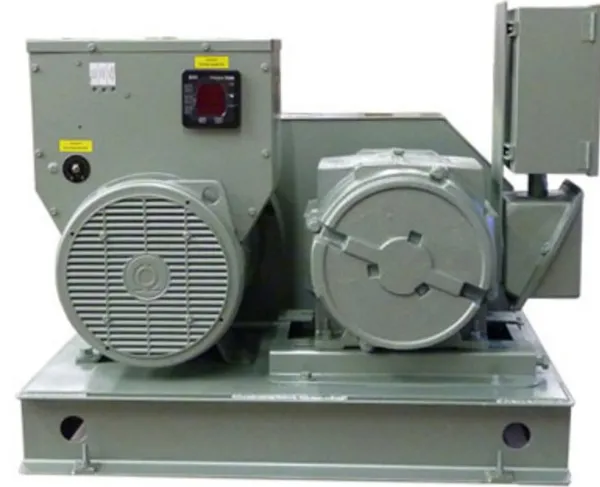

Georator manufacturers and supplies belt-coupled motor generator sets (rotary frequency converters) to all industries requiring the test or operation of electrical equipment using power characteristics (AC frequency) that are not available on the local power grid.  Belt coupling is the simplest and least expensive method of coupling the drive motor to the generator, using drive belts and pulleys. This method not only transfers the energy from motor to generator, but also is used to change the frequency by pulley ratios. The motor generator set converts frequencies of 50Hz, 60Hz, and 400Hz with a 500KVA power capacity. Phase and/or voltage conversion are inherently available in this process.

SPECIFICATIONS:

  • Economical generator sets; connected by belts/pulleys
  • When properly designed, drive belts DO NOT fail
  • Rotary frequency converter power ratings 1-500 KVA
  • Complete electrical isolation from harmonics, spikes.
  • High-efficiency induction motor
  • Synchronous generator w/voltage regulator.
  • Tight frequency regulation (+/-1%)
  • Waveform: THD
