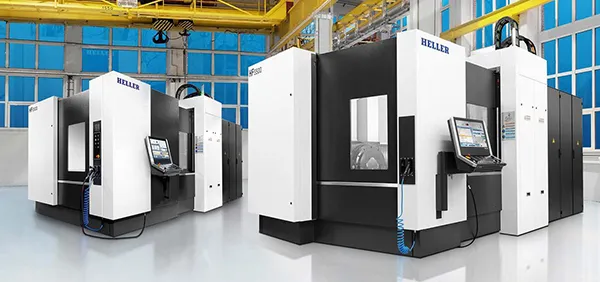

5-axis machining centers HF

5-axis machining centers HF

Productivity in 5 axes: 5-axis machining centers with a 5th axis in the workpiece for dynamic and productive machining

The new HF: Even more productive and precise in the second generation

The 5-axis machining centers of the HF series are optimally equipped for the high demands of modern production processes. Thanks to 5-side machining and simultaneous 5-axis machining, you can solve many tasks with just one machine. Highly productive and flexible, easy to operate and maintain, available with pallet changer or table loading.

The second generation of the HF series impresses with numerous optimizations, including new work units with increased performance and the advantages of the HELLER zero-spindle system for low lifecycle costs. The option of a second drive in the Z-axis also enables even more universal use in the production of individual parts. Combined with the proven HELLER genes of productivity, accuracy and reliability, we guarantee even more powerful, more precise and more flexible machining of your workpieces.

Facts

Overview of 5-axis machining centers from the HF series

• horizontal 5-axis machining centers with pallet changer or table loading
• universal machining centers with 5th axis in the workpiece
• NC swivel rotary table with counter bearing and AB kinematics with highly dynamic torque drives as standard
• Mill-Turn: combination milling and turning for HF 5500 with table loading (option)
• 3 equipment packages: POWER, SPEED and PRO
• Short chip-to-chip times thanks to the fast NC tool changer and maximum axis speed in the SPEED and PRO equipment packages (option)
• 5-axis machining with maximum performance: simultaneous (option) and with rotary axes engaged
• Working units with HSK-A 63 or HSK-A 100
• Gantry drive in Z-axis (option)

horizontal spindle for optimal chip fall

• short non-productive times for maximum productivity
• optimum accessibility for easy operation and maintenance
• Main control unit in desk design with 24" multi-touch screen and HELLER operation interface
• easy to automate with workpiece or pallet automation
• Machines with pallet changer ideal for series production
• Table-loading machines perfect for shop-floor manufacturing
