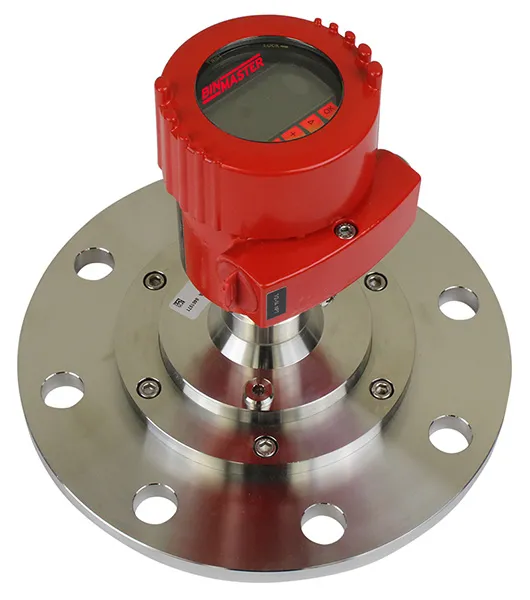

NCR80 Non-Contact Radar

NCR80 Non-Contact Radar

The BinMaster NCR-80 is a non-contact radar level sensor designed for superior performance in extremely dusty powders and bulk solids. Its powerful 80 GHz frequency focused in a narrow 4° beam angle with a measuring range up to 393 feet and accuracy within 0.2 inches means it excels in tall and narrow vessels. The NCR-80 is offered with a 10°swiveling, stainless steel flange for precise targeting; a lightweight plastic antenna with an 8° swiveling flange or a mounting strap for adjustable targeting; or a 1-1/2" NPT mounting option for use in an existing process connection. The NCR-80 is resistant to interference, while its advanced filters ensure rapid signal processing and an update rate of less than one second.

Applications

• Cement, grain, power, wood chips, pellets, sand, aggregates, or plastics
• Very tall, narrow silos for single point level measurement
• Vessels with excessive noise, dust, or high temperatures
• Vessels where precise aiming is needed to avoid flow stream, internal structure, or sidewall buildup
• Low dielectric materials or materials with limited reflectivity
• Mounted over piled material in flat storage warehouses
• Over conveyors belts to prevent overloading or detect when belts are running empty
• Measure levels within equipment, such as crushers or ESP hoppers
• Level measurement of piles or pits

Features

• Powerful 80 GHZ non-contact radar
• Measuring distance up to 393 feet
• 4° beam angle for precise targeting
• Reliable accuracy within 0.2 inches
• High temperatures up to 392°F
• Hazardous location approvals
• FDA approval for food or pharmaceutical use
• Chemical-resistant for long-lasting performance
• BinDisc option simplifies setup and configuration
