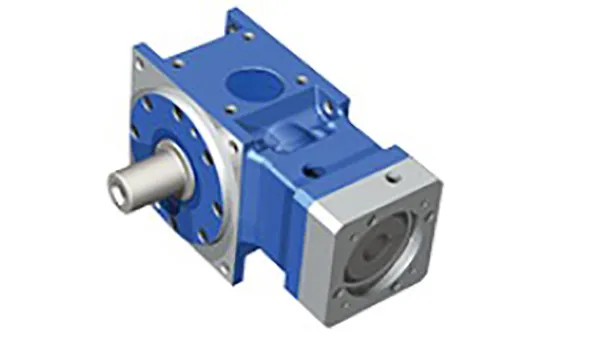

Dyna Series High Precision Right Angle Hypoid Gear Reducers

The Dyna Series is our highest precision right-angle gear reducer using sophisticated hypoid gearing.

Hypoid gearing combines the space and configuration advantages of worm gearing with the high efficiencies of bevel gearing. The result is the Dyna Series gearbox is able to achieve ratios up to 15:1 in a single stage and ratios up to 100:1 in 2 stages.

For the most demanding motion control applications that require high angular accuracy, choose our new DSX gearbox. It offers extremely low backlash, extremely smooth torque transmission and extremely low noise. Angular accuracy test data is available upon request.

We’ve taken the highest-performing gearbox on the market and redesigned it for greater durability, smoother gear rotation, improved bearing life, and reduced noise.

FEATURES

• Ratios up to 15:1 in a single stage - the highest in the market - and 100:1 in just two gear stages
• High efficiency
• High allowable axial and radial loading
• Ultra low backlash
• Back drivable
