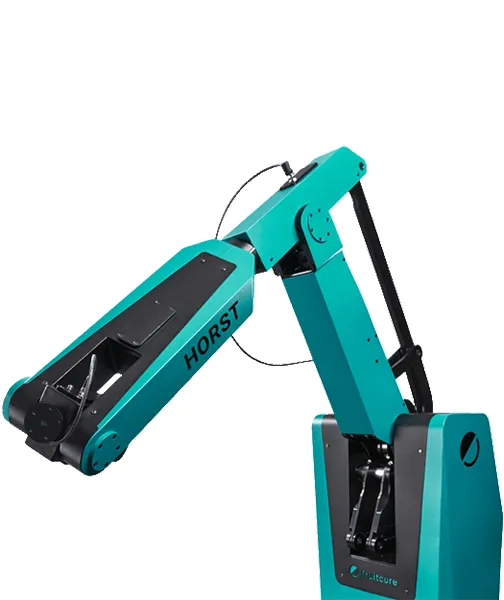

Industrial robot HORST1400
Industrial robot HORST1400
Industrial robot HORST1400 is the robot for parts handling in a larger radius. In logistics, when handling plastic or metal parts, the HORST industrial robot brings productivity to all areas and applications. Implement your automation solutions in a short time, even without programming knowledge.
When size matters.
Get into Industry 4.0 now with fruitcore robotics . As a holistic robot system, the performance spectrum of our robot enables the automation of a large number of industrial applications. Our Digital Robot is very easy to program, offers maximum productivity and opens up all the possibilities of Industry 4.0.
The HORST1400 robot system consists of the HORST1400 industrial robot, the horstCONTROL control cabinet – including a complete safety controller – as well as the horstPANEL robot operating panel and the horstFX basic operating software that can be updated.
With a maximum range of over 1400 mm and a maximum payload of up to 12 kg, the HORST1400 is the largest and most powerful industrial robot in the HORST robot family to date. HORST1400 weighs around 150 kg and has a repeatability of +/- 0.1 mm. Like all digital robots from fruitcore robotics, the HORST1400 is characterized by an uncomplicated connection to external machines and, in combination with a wide variety of grippers, suction cups, dispensers or optical image processing systems, can easily and efficiently master a wide range of automation tasks.
HORST is an industrial robot developed and built in Germany. For you, this means: high quality and short delivery times. The attractive price-performance ratio and the short amortization period are also convincing.
Your advantages with our Digital Robot
- Easy handling
- Unbeatable value for money
- Can be used in almost all industrial sectors
- Max reach of over 1400mm
- Digital Robots: Simplicity in all phases of life - from initial installation and connection to operation, maintenance and repair
Particularly resilient.
HORST1400 lifts loads of up to 12 kilograms. HORST1400 is the robot for parts handling in a larger radius. It has a footprint of 454 x 454 mm. In logistics, when handling plastic or metal parts – HORST industrial robots bring productivity in all areas and applications.
Powerful.
With a maximum range of 1425 mm, the HORST1400 is the largest and most powerful industrial robot in the HORST robot family to date. The 6-axis industrial robot HORST1400 is based on a new type of drive concept with its four-bar chains. This makes it very powerful and has an optimal ratio of reach and payload.
Really exact.
HORST1400 takes everything very precisely: Precise positioning is a matter of course for our digital robot. The combination of serial and parallel structures leads to high rigidity and very good mass distribution. That is why it is easy for our industrial robot to work with high absolute and repeat accuracy.
Pretty fast.
HORST provides material - and not too little: Thanks to its structure, its drive power is highly efficient and the axis speeds are amazingly fast. With a speed of up to 4.3 meters per second, this industrial robot moves at high speed at the tool center point (TCP).
