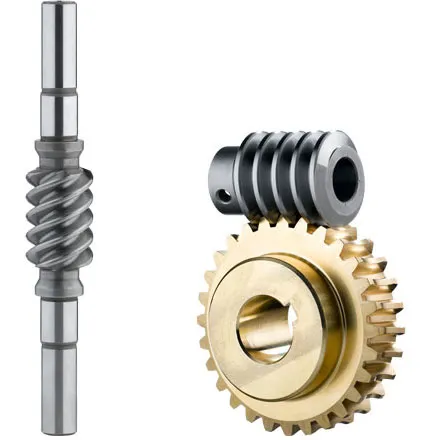

Worm Gear Sets

Worm Gear Sets

• Custom production according to customer request
• Diameter from 15 to 300 mm, axial distances from 17 to 210 mm, module from 0.5 to 10, shaft length up to 500 mm
• Material selection according to customer requirements (steel, bronze, fabric laminate or plastic)
• All process steps (turning, hobbing, annealing, flank grinding, grinding, measuring) from a single source

Our worm gear sets cover a wide range of applications. We demonstrate our years of experience and high level of capacity by producing more than 1 million worm gear sets every year in-house, most of which are created according to custom specifications.

Our catalog of worm gear sets in line with the Framo Morat standard have diameters ranging from 20 to 135 mm and axial distances of 17 to 80 mm. In addition, we offer custom worm gear sets with diameters of up to 300 mm and center distances of up to 210 mm.

The catalog of worm gear sets can generally be supplied (from our) warehouse in a wide selection of axial distances and gear ratios with fine degrees of differentiation. We can also calculate and produce customer-specific axial distances and gear ratios at the plant. We prefer to produce worm gear sets for right-handed users, but these sets can be designed for left-handed users on request.

We perform all major soft and hard machining steps in-house, including annealing in our own ovens. Thanks to extensive production depth, we are able to execute, even highly complex, machining tasks precisely according to customer expectations and in the highest quality.
