PK1D 2 Component Dispenser

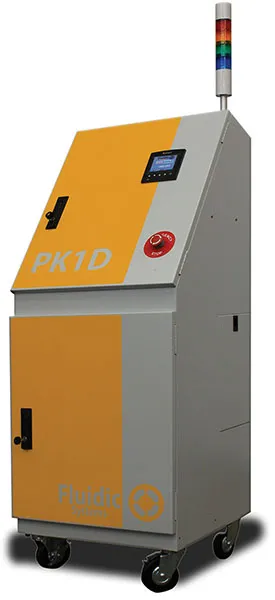

PK1D2 Component Dispenser

Fixed Ratio

Recently launched PK1D. Compact footprint with the same accuracy, repeatability and Fluidic technology.

Recommended for fixed ratio 2 component (2K - 2 part)  meter, mix and dispense applications, including hard to handle abrasive, heavy filled, thixotropic and/or odd ratio materials.

Features and Benefits

• Linear Displacement Pump (LDP) - Double acting positive displacement rod pumps (Patented)
• Continuous metered flow (virtually pulse-free) = Shorter Cycle Time
• Dynamic flow rate control 1cc/min. to >gal/min. = Precision Flow Control
• Viscosity range 1cps to heavy non-flow abrasive compounds = Universal Pump Utility
• Pressure range 1psi to >3,000psi = Universal Pump Utility
• No Pistons, Check Valves, Flow Meters = No Slip Factor, No Calibration, Reliability
• Low shear = Density Integrity of Syntactic Compounds
• Cross-Over Valve (XV2) – Automated 4-way directional flow control valve (Patented)
• Replaces check valves for load/dispense functions during LPD reciprocations = Reliability
• Allows pressure balancing inlet/outlet pressures = Continuous Pulse-Free Metered Flow
• PLC Servo Motor Pump Drives Control Benefits:
• Enables Precision Mix Ratio, Flow Control and Factory Automated Control Functions
• Touch Screen Benefits:
• No Mechanical Control Adjustments, Control

Standard Features

• Linear Displacement Pumps (LDP)- Cross-Over Valves (XV2)
• PLC Controlled Servo Drive
• Touch Screen Control Interface (6” Mono Chrome)
• Dispense Valve Gun
• Floor Stand
• Dispense Modes: Manual / Programmable

Optional Features

• Material Supply Sensors (MSS) – Inlet Material Sensors
• Liquid Level Sensors - Pressure Pots, Pails, Drums, Totes
• Auto Pressure Balancing – Inlet Supply / Outlet Dispense Pressures
• Static Mounted Dispense Valve - Foot Switch or Robotic Activation
• Robotic Integration – Start/Stop, Flow Control, Purge/Flush Control
• Type X Air Purge – Class I, Div1, Group D
• Material Supply – Pressure Pots / Transfer Pumps
• Signal Tower – LED Light/Audible Alarm
• Cabinet Surface Mount Brackets
• Overhead Jib Crane
• TFE SS Braided Hose Assemblies
• Thermostatic Controlled Heating Solutions
