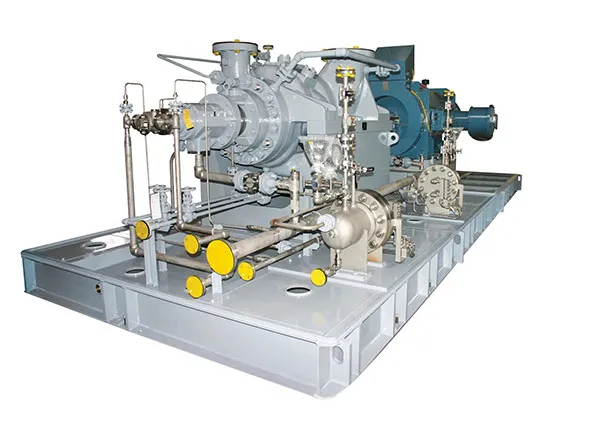

Single Case Pumps - Radially Split-WTB

Single Case Pumps - Radially Split-WTB

Made in two- and three-stage designs with top/top nozzles, the Flowserve WTB pump is a between bearings, radially split, volute type process pump engineered to provide safe, reliable operation at elevated temperatures and pressures. To reduce NPSHr, a double-suction, first-stage impeller is standard on all but the two smallest sizes. Featuring hydraulics that fall between that of a typical two-stage BB2 pump and a typical multistage BB5 barrel pump, the unique three-stage WTB is a reliable solution for niche applications in refineries, chemical and petrochemical operations, and power plants.

Features & Benefits

•    Heavy-Duty, Dual Volute Casing With an Integral Crossover ensures radial hydraulic balance and stable performance over the pump’s full operating range.
•    Centerline Supported, Radially Split Design prevents distortion at high temperatures and pressures.
•    Double-Suction First-stage Impeller minimizes axial thrust and significantly reduces NPSHr, often eliminating the need for booster units.

Specifications

• ISO13709 / API610 (BB2)
• Flows to: 1400 m3/h (6165 gpm)
  Heads to: 1100 m (3610 ft)
  Pressures to: 108 bar (1565 psi)
  Temperatures to: 430°C (800°F)
• Size Range: 4,6,8 & 10 inch
• Pressure Class Range: Pressures to 108 bar (1565 psi)
• Materials:
•    S5
•    S6
•    S8
•    C6
•    A7
•    A8
