FiDUS Power Ltd

LMF1000-20B

LMF1000-20B

• Current share for up to 4 units for 3800W
• I2C communication
• EN55032 Level B conducted & radiated
• Remote on/off, DC OK, 5V 2A standby, remote sense
• 4000VAC medical isolation 2x MOPP
• Meets EN60335-1 for home appliance

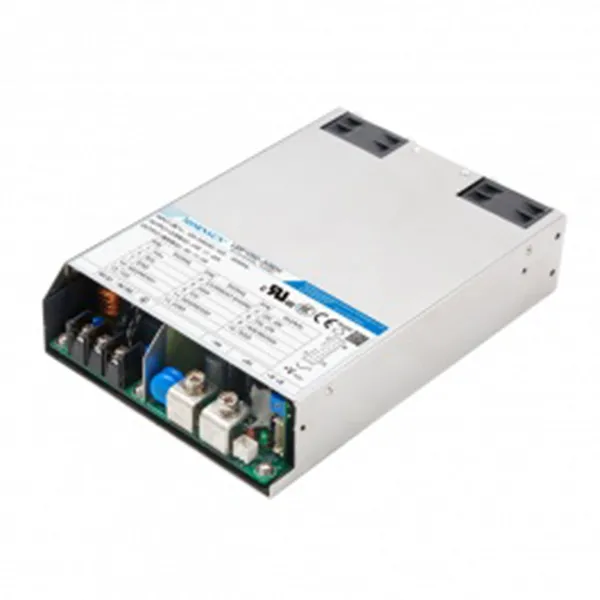

The LMF1000-20B series of enclosed AC-DC power supplies offer up to 1009W of power accepting universal input range from 90-264VAC. The series has the latest medical and  ITE/AV safety approval IEC60601-1, UL/EN/IEC 62368-1 and conforms to EMC level B EN55032 conducted and radiated. Outputs are available from 12 to 48V complete with short circuit, over current and overvoltage protections. They feature on/off control, 5V 2A standby, DC OK and remote sense I/O.
