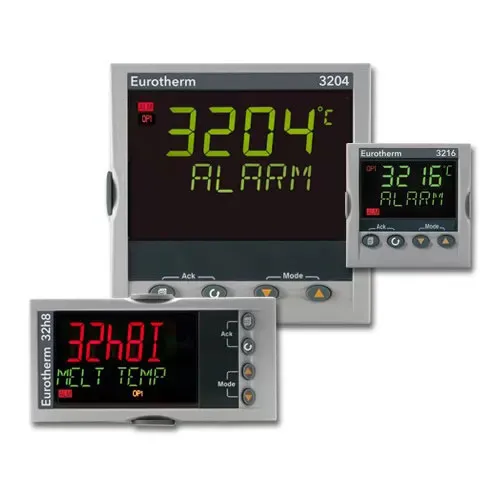

3200i Indicator and alarm unit
3204i, 32h8i, 3216i – Accurate indication of temperature and process measurements
The Eurotherm range of 3200i indicators offer accurate indication of temperature and process measurements. Process interlocks, including overtemperature furnace limits, are implemented using relay output channels.
The emphasis is on ease of use. A simple ‘Quick Start’ code is used to configure all the functions essential for indication and protecting your process.
Description
Ideal for:
Specification
Input Type
Custom, mA, mV, RTD, TC
Panel size (DIN)
1/16, 1/4, 1/8
IP Rating
IP65, NEMA 12 / NEMA 4X (3216 Only)
Control Types
3216i, 3204i: 4 Digit LCD plus 5 character alphanumeric, 32h8i: 5 Digit LCD plus 9 character alphanumeric
Alarm Types
Dev, Hi, Lo, Rate, Sensor Break
Supply Voltage
100-264V ac, 24V dc/ac
Transmitter Power Supply
24V dc, None
No of Alarms
3
Safety-approvals
EN14597/TW, Factory Mutual (FM) approved
PC Configuration
Graphical wiring
Transducer Power Supply
10V dc, None
User Calibration
5 point, Auto Tare, Load Cell, Shunt
No of Relay Outputs
3216i: 3 32h8i, 3204i: 2
Digital IP/Logic OP
2/0
Retransmission
3216i: Non isolated 32h8i, 3204i: Isolated
Custom Messages
128 Characters
Slave Comms
Modbus RTU
Melt Pressure
3216i, 3204i: No 32h8i: Yes
PV Input Selection
None
