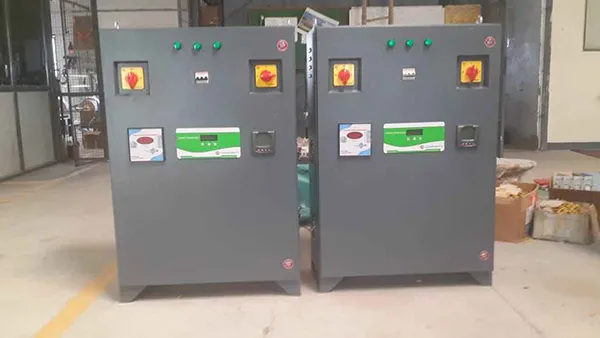

Energy Saver for Motor Load

Energy Saver for Motor Load

ES~25 is a high efficiency device to optimize the voltage, reduction of harmonics and adjusting the capacitance of the motor to minimize the power loss or wasteful energy and convert into direct savings The equipment is best suited for variable load motors such as Compressors, Lifts, Escalators, injection Maulding Machines etc. The drop of voltage from 3.3V to 2.9V (optimum level) resulted in 9% reduction in voltage resulted in 20% reduction in consumption for the Microprocessor

System Schematics

• Harmonic Suppression – Designed to eliminate Harmonics
• Star connection to optimize the voltage
• Power Factor improvement to adjust the capacitance to the desired level
• Impedance matching technique is used.

Active Harmonic Filters and Power Optimizers in ES~25 Energy Savers help to eliminate harmonic pollution from the grid, reduce power quality problems and use energy more efficiently and reliably.

Low power factor results high current, rise in copper loss and reduction of efficiency of the system. Incorporation of Power Factor Correction System in ES~25 Power Saving Equipment facilitates improvement in the Power Factor because this is designed to achieve precisely unity power factor/ near to unity to get maximum PF rebate and avoid leading PF and available for balanced as well as unbalanced loads.
