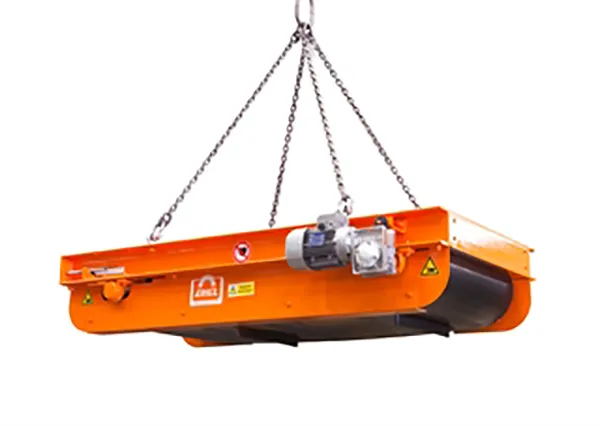

Model CP Permanent Magnets

Model CP Permanent Magnets

The CP Magnet are ideal for general tramp iron removal from a range of materials. CP magnets utilize a permanent magnet circuit to provide a continuous and uniform magnetic field across the feed belt to optimize separation efficiency of damaging tramp iron. The self cleaning feature supplied with the unit provides for automatic removal of accumulated tramp metal.

Features and Benefits:

• Low operating cost
• No electrical maintenance on magnet
• No costly shutdowns
• Uninterrupted magnetic protection
• Simple installation
• Powerful magnetic field
• Permanent magnet requires no power

The magnet is placed across the conveyor belt. A moving continuous belt surrounds the magnet box. Ferrous material is attracted by the magnet and is held on the belt. As the belt moves clear of the magnetic field, ferrous metals fall away into bins for collection and disposal. The CP is designed for a maximum suspension height of approximately 10 inches (250 mm) on belts less than 36 inches (1 m) wide. Applications involving wider belts or higher suspension may require a larger suspended permanent magnet.
