Colibri
Colibri
High Speed SMT PCB Connector for 16 Gbps applications

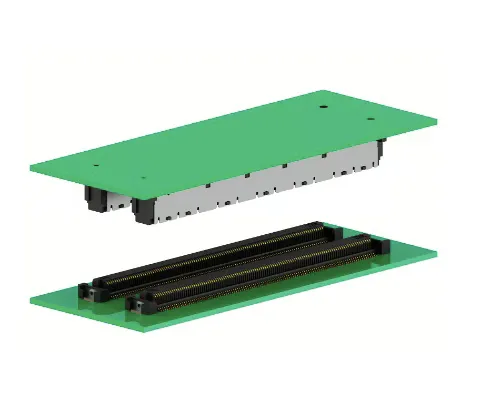

Colibri® is a shielded, two-row SMT connector system with a 0.5-mm pitch.
Features
- Meets the requirements of PICMG COM Express®
- and SFF-SIG CoreExpress®
- Compatible with popular connectors
- For 10+ Gbit/s or 16+ Gbit/s applications
- Rugged connector design
- Integrated area for placement
- Packaged in tape & reel
Applications
- COM Express®
- CoreExpress®
- Mezzanine board-to-board
- VITA59
Features of Colibri COM Express Connectors
Colibri® is a shielded, two-row SMT connector system with a 0.5-mm pitch.It meets all of the specifications for PICMG COM Express®, SFF-SIG CoreExpress®, and nano-ETXexpress. Colibri® products are compatible with all popular connector systems on the market and have been thoroughly tested.
Typical areas of application for COM Express
- Industrial automation
- Kiosk and POS systems
- Medical technology
- Metrology
- Consumer electronics and gaming
- Transportation
- Facilities engineering
- Server
The COM Express Standard
The COM Express® standard was developed by PICMG for the computer-on-module (COM) form factor. The standard specifies, among other things, what size the module should be and where the mounting holes and pin connections for the carrier board should be positioned.
COM Express® modules integrate the core functionalities of a bootable PC, including CPU, a graphics professor, internal memory, and standard interfaces.
Connecting a COM module to a carrier board reduces development time and costs. In addition, it is possible not only to extend the cycle of a product, but also to upgrade it by attaching newer, higher performance COM Express® modules to the carrier board.
