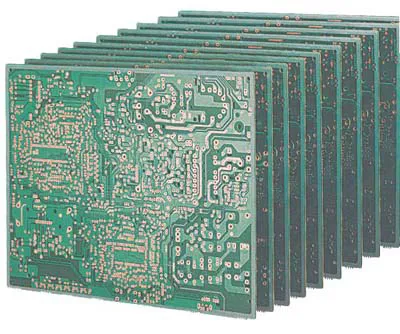

Single Sided Printed Circuit Board
Single Sided Printed Circuit Board
Prodcution Capacity - 1,00,000 sqm/month
Sector Catered - Consumer Electronics, Computer Periferals, Lighting, Telecom, Automobile etc.
Prodcution Capability
Types of Laminates:FR-1, FR-2,CEM-1, CEM-3, FR 4, PTFE
Laminate Thickness:0.2mm, 0.4mm, 0.80mm, 1.00mm, 1.20mm, 1.60mm
Cu Foil Thickness:17.5 micron, 35 micron, 70 micron, 105 micron
Minimum Track Width:0.15mm (6mil) for 35 micron Cu , 0.20mm (8mil) for 70 micron Cu
Minimum Spacing between the Tracks and Pads:0.15mm(6mil)
Maximum PCB Size:610mm X 500mm
Minimum Hole Size (Punching):0.7mm
Minimum Hole Size (CNC Drilling):0.4mm
Surface Finishing:Lacquer, Organic surface protective (OSP) , HAL, (Lead free/Tin Lead) ,Immersion Tin
Hole/Outer Profile:100% Punching & Blanking, CNC Drilling & Routing
Specification. Standards:PC-A-600, IPC-SM-840, IPC-RB-276, IPC-TM-650. MIL 55110P, MIL P13949G
