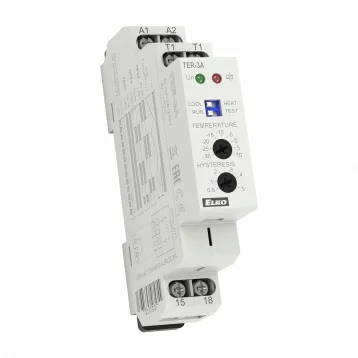

Thermostat TER-3A

Can be used for monitoring temperature e.g. in switchboards, heating systems, cooling systems, liquids, radiators, motors, devices, open spaces, etc.

DESCRIPTION
Single thermostat for temperature monitoring and regulation in range -30 °C to +70 °C (-22 °F to 158 °F) in six ranges.
Function of short-circuit or sensor disconnection monitoring.
Possibility to set function “heating”/”cooling”.
Adjustable hysteresis (sensitivity) , switching by potentiometer in range 0.5 to 5°C/ 32.9 to 41 °F.
Choice of external thermo sensors with double insulation in standard lengths 3, 6 and 12 m (9.8´,19.7´ and 29.5´).

TECHNICAL PARAMETERS
Multivoltage supply AC/DC 24 -240 V, not galvanically separated.
Output contact: 1x NO - SPST 16 A /250 V AC1.
1-MODULE, DIN rail mounting.
