SPECIAL HIGH POWER CAPACITORS

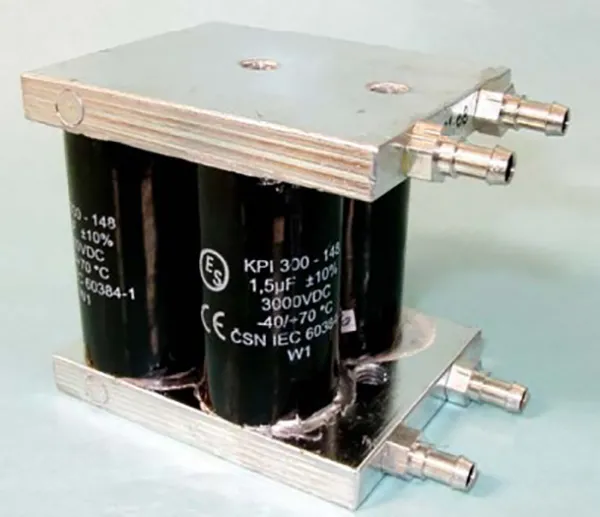

FOR HIGH FREQUENCY INDUCTION HEATING KPI300 – 148 1,5Uf
Construction:
Special winding units soldered on metal plates, whichensure cooling of the capacitors. The winding unitshave non-inductive, self-healing construction,
Applications:
The capacitors are designed for use in very high powerand high frequency resonant circuits of inductionheating devices.
The construction of contact-plates are adaptable inaccordance to customer requirements.
Technical data
Rated voltage UR: 3000DC MAX.
recommended working voltage 2000 ÷ 2400VDC,
depend on the cooling-condition and workingfrequency.
Rated voltage is the max. DC or peak voltage,for which the capacitor is designed.If the capacitor works with the DC and alsosuper-imposed AC voltage UAC, the sum of DCand the amplitude of AC must not exceed the UR
Max permissible AC voltage: 750 VRMS/50Hz, bygood fluid-cooling.
If the working frequency is higher, the permissible ACvoltage must be decreased, not to exceed the max.
loss power of the capacitor.
