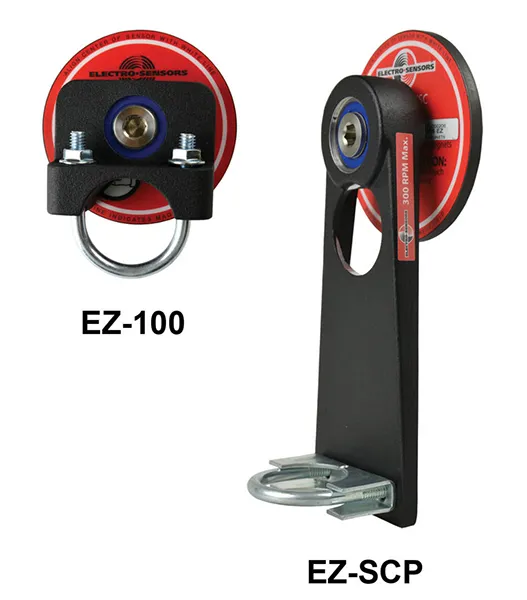

EZ-100 Mounting Bracket

EZ-100 Mounting Bracket

Features

• New and retrofit installations• Easy and fast installation (drill and tap)• No extra brackets or hardware required• 1/2 inch - 13 UNC 2A thread• Includes 255-EZ Pulser Disc (other EZ Pulser Disc    models available)• Rated for use up to 300 rpm (for information about    use with higher speeds, consult factory)

Can be used with the following shaft speed switches and sensors:   • 907 XP  • M100  • M100T  • FB420  • SpeedTalker DN-XP

 EZ-SCP Mounting Bracket

Features• New and retrofit installations• Easy and fast installation (drill and tap)• No extra brackets or hardware required• 1/2 inch - 13 UNC 2A thread• Includes 255-EZ Pulser Disc (other EZ Pulser Disc    models available)• Rated for use up to 300 rpm (for information about    use with higher speeds, consult factory)

Can be used with the following shaft speed switches:  • SCP1000 / SCP2000

EZ Mounting Magnet Option for Untapped Shafts

MM-2.00 Mounting Magnet• No drilling or Tapping Needed• Must be used with Mounting Brackets EZ-100 or EZ-SCP• Used with M100, 907 XP, M100T, FB420, SCP1000 / SCP2000,    SpeedTalker DN-XP
