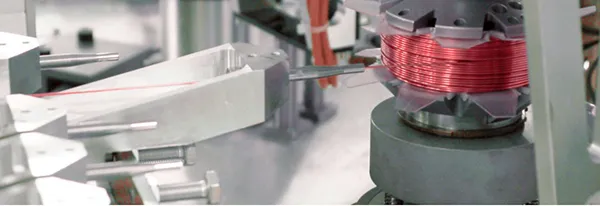

Linear Winding Technology

The centrepiece of winding tooth chains is our linear winding machine, which can wind open stators or linear motors in a very wide range of stack designs as well as wire diameters and therefore offers the highest flexibility with the lowest investment.

Additional Technical Highlights

• Precise and tight-fitting wire guidance, especially suitable for large wire diameters
• High fill factor through layer winding
• Adaptive loading and unloading concepts
• Synchronous axis control
• Automatic contacting
• Flexible set-up enables easy retooling
• Interconnect directly in the winding process
