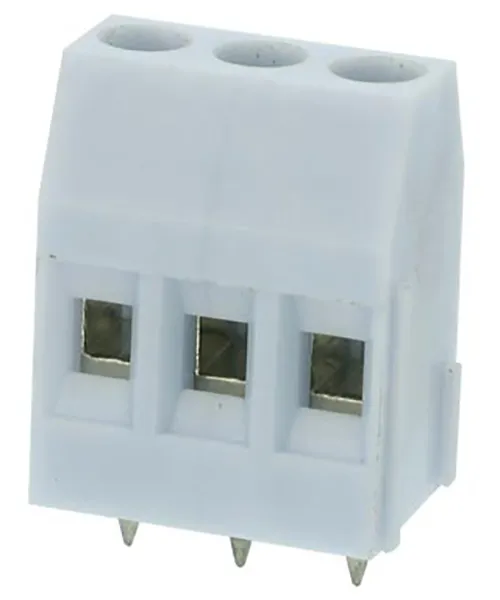

EB1091 Series Rising Clamp Blocks
EB1091 SERIES Rising Clamp Blocks
Maximum number of positions: 24
Centerline Spacing: 5.08mm Spacing (0.200")
ELECTRICAL:
Voltage Rating: 300 VAC
Current Rating: 20 Amps
Wire Range Min / Max: 12-22AWG
MECHANICAL:
Torque: 3.6 lbs-in. Max.
Soldering Tempertures: 260°C, 500°F for 5 seconds Max
MATERIAL:
Insulator Body Material: Polyamide, UL 94V-0
Terminal Screw Size: M3.0
Terminal Screw Material: Steel, Zinc Plated, "-" Slotted
Contact Block Material: Brass, Ni Plated
Contact Solder Pin Material: Brass, Tin Plated
Color: Gray
PRODUCT NOTES:
EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness.• Available in modular and molded to size constructions.• Standard molding materials to all UL94V-O flammability class.• High temperature materials for re-flow applications available.• Custom marking, screws and pin length readily available.
