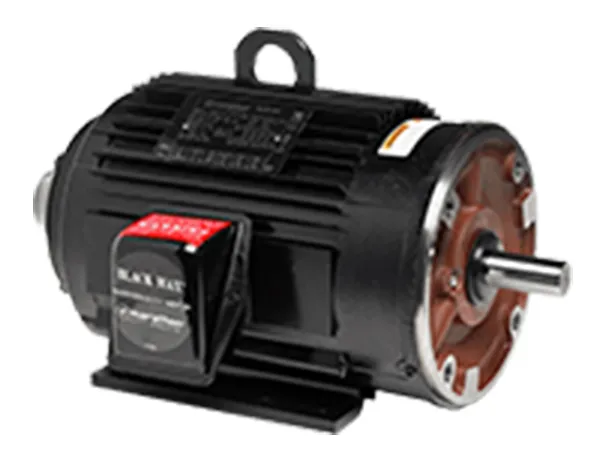

BlackMAX inverter duty motors

1/4 - 30 HP

BlackMAX inverter (Vector) duty motors offer 1000:1 constant torque (TENV). This three phase motor is designed for inverter or vector applications where up to 1000:1 constant torque speed range is required. Typical uses include: Material handling, machine tools, conveyors, crane and hoist, metal processing, test stands, pumps, compressors, textile processing, and other industrial machinery installed in dusty or dirty environments.

Features

Highlights:

• 1000:1 Constant Torque
• 1.0 Service Factor on VFD
• Totally Enclosed Non Vent, C-Face, foot-mounted (except as noted)
• Class F MAXGUARD® insulation system
• F1 standard, field reversible to F2 (except as noted)
• Encoder and brake provisions included on opposite drive end
• NEMA Design A
• Ball bearings
• Class F N/C thermostats
• Optimized for VFD operation
• Continuous duty at 40°C ambient
• UL Recognized and CSA Certified
• Three year warranty
