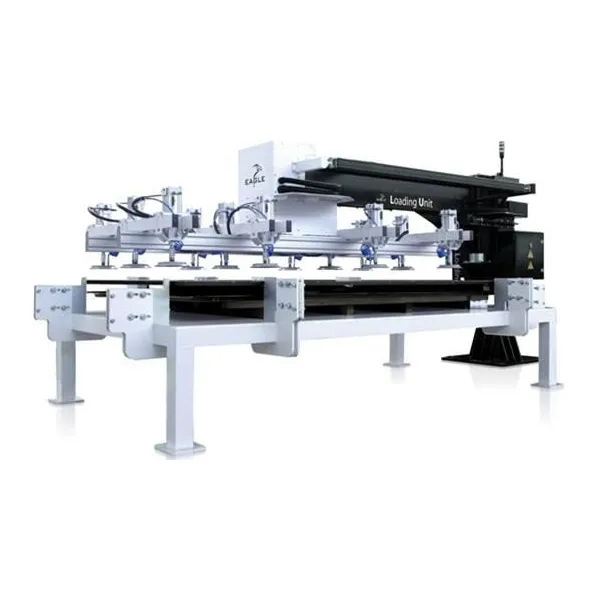

Automated Loading Unit system

The loading system is fully automatic and fully integrated with the machine. It consists of a rotary frame with suction cups.

The unit after receiving operator’s order takes itself a sheet metal from the pallet (with magnets for sheets separation) placed next to the external pallet of the machine.

Technical Specifications:

Cycle time: 55 s
Max. sheet size: 1.25m x 2.5 m; 1.5m x 3m; 2m x 4m
Max. sheet: 25 mm
