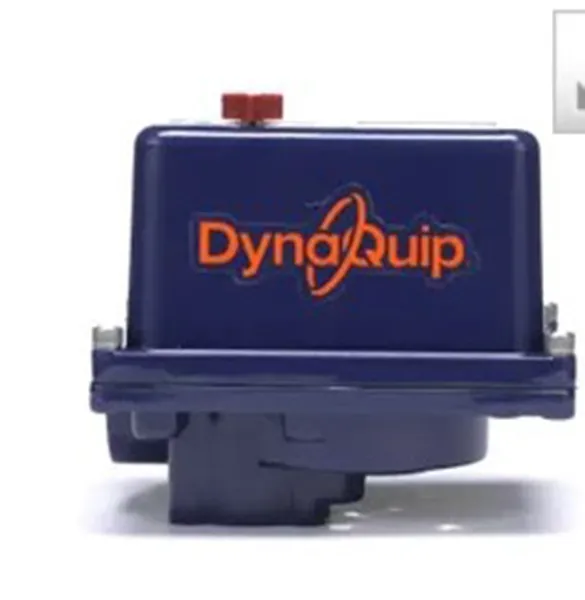

DE153, Electric Actuator - DE Series - 0 - 300 in·lbs
DE153, Electric Actuator - DE Series - 0 - 300 in·lbs
Voltage120 VAC
Torque150 in·lb
Height5.18 in
Width4.24 in
Length5.66 in
Weight4.00 lb
TypeElectric, Quarter-Turn, Reversing, Permanent Split Capacitor
Enclosure TypeNEMA 4 / NEMA 4X Weatherproof/Corrosion Resistant Housing
Phase1
Frequency50 Hz
60 Hz
Temperature Range - Ambient-40 to 150 ºF
NoteElectric, Quarter-Turn, Reversing, Permanent Split Capacitor, Parrallel Wiring, Damper
Applications
MaterialDie-Cast Aluminum, Epoxy Coating
Application
Ball Valves, Gate Valves, Globe Valves, Plug Valve, Dampers, Quarter-turn Valves, HVAC controls, Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
