Hydraulic Grease Guns
Hydraulic Grease Guns
Rated to 10,000 psi
DUALCO Hydraulic Grease Guns are needed for high pressure applications. Benefits include operating ease and smooth efficiency. Usable in any position, these guns are rugged, long lasting, precision manufactured and are recommended for high temperature and harsh environment services such as steam, hot oil, hot compressed gas, and offshore.
Standard and special lubricants in stick or bulk can be applied with These Guns. Highly viscous lubricants, sealants, packings, and cleaners can be pumped with ease. They are adaptable for pumping liquids and good for measured amounts, preventing excess material discharge. Dualco Hydraulic Grease Guns are also used for hydrostatic and applied testing on pipelines and wellheads. • For Industrial Use Only. •
Features
Rated to 10,000 PSI.
• Safety Latch & Tamper proof internal relief valve.
• Detachable handle with 1oz. calibrations (measuring volume).
• Handle used as push rod to return barrel piston and to lock & unlock barrel cap.
• Superior performance with viscous lubricants, sealants, packing & cleaners.
• Easily serviceable and all replacement parts are readily available.
• Double Bypass Valve Stop & Sliding Stop Link.
• Easily refilled with sticks or bulk.
• Heavy duty metal construction.
• Handle retaining Strap
• “Sure Grip” surfaces.
• Corrosion resistant.
• Easily Refilled.
Applications
Lubricating Pumps and Ball, Gate & Plug Valves.
• Pipelines conveying chemicals, crude or refined oil, natural gas, lpg, hydrocarbons & other fuels, pumping & compressor stations, refineries & chemical plants.
• Steel mills, lumber & paper mills, gas & oil drilling / production fields, asphalt, rubber, water & sewage treatment plants, heavy equipment, manufacturing, mining, marine, industrial and municipal utilities.

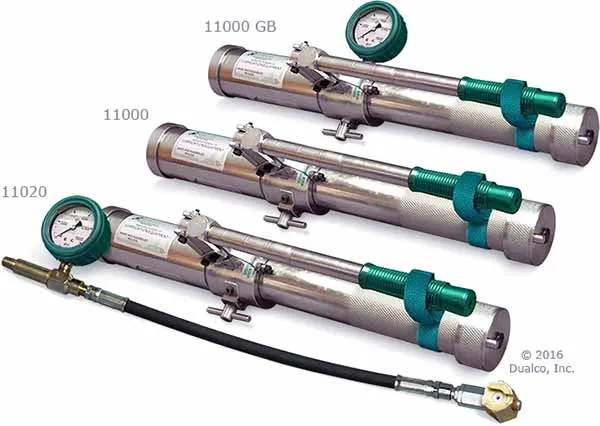

• Model 11020 includes the 26” O.A.L. 10876 Hose Assembly with integral pressure gauge. This hose assembly has a Giant Button Head Coupler outlet. Model 11000 is the basic gun only, with no attachments. Model 11000GB includes the basic gun and integral pressure gauge attached to the gun body. Many other gun and hose assembly options are available.
Specifications
Capacity: One “J” size stick, 9-1/2 oz. or 17 cu. in.
Delivery: 1 oz. / 50 Strokes
Self Priming: Standard
Outlet: 1/4″ NPT • (other outlet sizes available)
Operating Pressure: Up to 10,000 psi
Net Weight Model 11000: 13-1/2 pounds
Net Weight Model 11000GB: 14 pounds
Net Weight Model 11020: 16 pounds
Dimensions Basic Gun: (excluding hose assembly) 20-1/2” x 6” x 3-3/4”
