Driesen+Kern GmbH

Data Logger DCXP

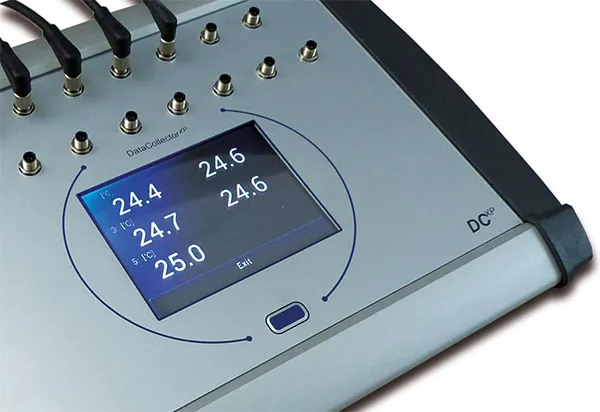

The Driesen+Kern GmbH DataCollectorXP is an 8 or 16 channel data logger for a variety of probes and signals. The battery operated logger has an ultra-low power consumption to allow for long-term measurements (i.e. several years)

The DataCollectorXP comes with comprehensive and powerful software for controlling the device, downloading and analysing data. The software of the DataCollector works on PCs, notebooks, and tablets with Windows operating systems.

Four models are available: DCXP with 8 or 16 flexible inputs with terminal blocks and DCXP-R with 8 or 16 special connectors compatible to our product line of DK3xx and DK6xx loggers with 2 or 3 inputs.

With the DCXP the probes are connected to flexible input sockets (terminal blocks) on the rear side whereas the DCXP-R connecting sockets are on the top of the housing and are compatible with the "rugged" models DK6xx and DK3xx. Both the DCXP and the DCXP-R are available with either 8 or 16 inputs: DCXP8, DCXP16 and DCXP8-R and DCXP16-R.

Driesen+Kern GmbH offers a variety of probes such as PT100/PT1000 for temperature, strain gauges, transducers for pressure, force, radiation and air velocity for connection with the DataCollectorXP. Using the DKCI/DKCU cables standard analog signals (0-1V/5V/10V4-20mA) can be connected. Refer to the DCXP, DCXP-R data sheet for our comprehensive range of probes.

Applications:


• Research and development
• Process optimization
• Monitoring of environmental parameters
• Quality assurance
• Climate studies
• Building restoration
