Dr. Fritz Faulhaber GmbH & Co. KG

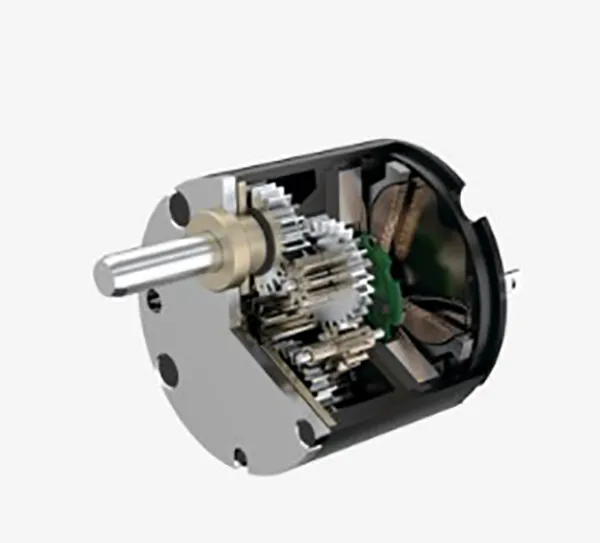

Faulhaber SR-Flat

Flat DC-Micromotors and DC-Gearmotors

Precious-metal commutated DC-Micromotors with uniquely flat coil technology with three flat, self-supporting copper windings used in the SR-Flat series form the basis for drive systems in applications where space is extremely limited.

With their powerful rare-earth magnets, the motors deliver a continuous output of 0.8 W to 4 W and at the same time have only minimal inertia. The motors are available with integrated gearheads and optical encoders – both with an extremely flat design matched to the motors. When combined with integrated gearheads and encoders, they provide a very compact drive system with increased output torque.
