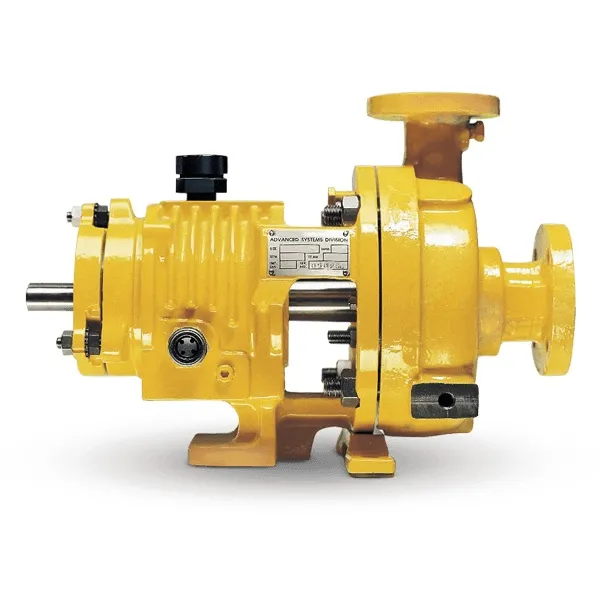

Frame S Centrifugal Pumps

Frame S Centrifugal Pumps

The Frame S Centrifugal Pump is the heavy duty alternative to standard small frame pumps which can easily become overstressed when operated off the best efficiency point of its performance curve. The Frame S Centrifugal Pump provides mid-frame strength and reliability in small frame space. It can be installed in the same space, on the same baseplate, and with the same piping as conventional small frame pumps, and is available in four different sizes.

Heavy duty alternative to standard small frame pumps
Lowest L³/D4 stiffness ratio of any competitive size pump
Designed and built for the toughest applications

Features and Benefits

Mid-size frame strength and reliability in small frame space - heavy-duty alternative to standard small frame pumps
Four model sizes to fit a wide range of applications and size restrictions
Lowest L3/D4 stiffness ratio of any competitive size pump - 46 (1.9) Frame S
Meets ASME/ANSI dimensional specifications
Flow capacities to 450 gpm (102 m3/hr)
Equipped to accept a C-Frame (NEMA)/D-Flange (IEC) motor adaptor, providing
alignment of motor and power end without special tools or excessive labor
Right or left side discharge is possible with optional special foot
Heavy-duty construction and low stiffness ratios on shafts
Prevents common vibration damage and improves seal life
Short shaft overhand reduces bearing load to extend bearing life
Oversized heavy duty bearings provide greater load capacity and extend bearing
life
Frame S offers an optional bearing frame foot with overhung casing
