Dosatron

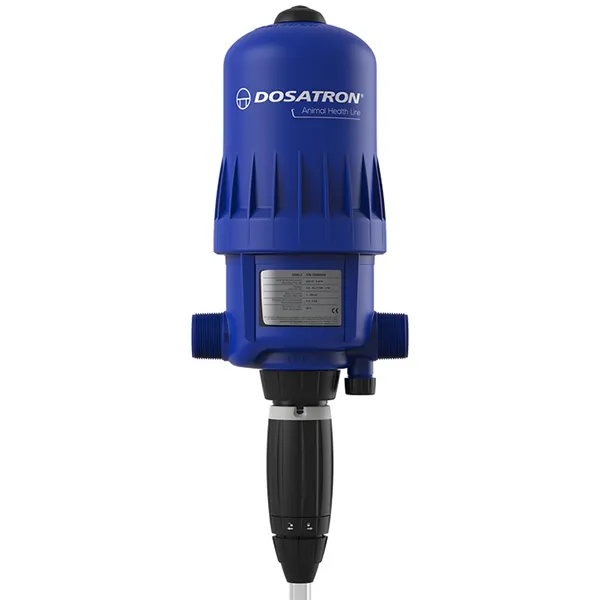

D9AL2

D9AL2

Special for large-scale production

The D9AL range meets treatment requirements from 500 l/h to 9 m3/h, for applications such as pig fattening, large breeding buildings or supplementation in large-scale cattle production.

• Extended flow range.
• Reinforced reliability and simplified maintenance.
• Optimized chemical resistance.

Specifications

• Injection range 0,2 - 2% [1:500 - 1:50]
• Water flow range 500 l/h - 9 m3/h
• Operating water pressure 0,3 - 8 bar
• Concentrated additive injection 1 - 180 l/h
• Stroke volume ~ 1,7 l
• Connections NPT-BSP 1"1/2 M Ø 40x49mm
• Hose PVC - Ø 12x16 - Lg 1,75 m
