Features
Motors are designed to withstand without any damage the pressure caused by an internal explosion and are also able to prevent flame propagation outside
Advantages
No purging before starting No pressurization system required No inert gas needed No thermal limitation for “te” time No need for system test in VSD applications Individual certification not required Low maintenance costs

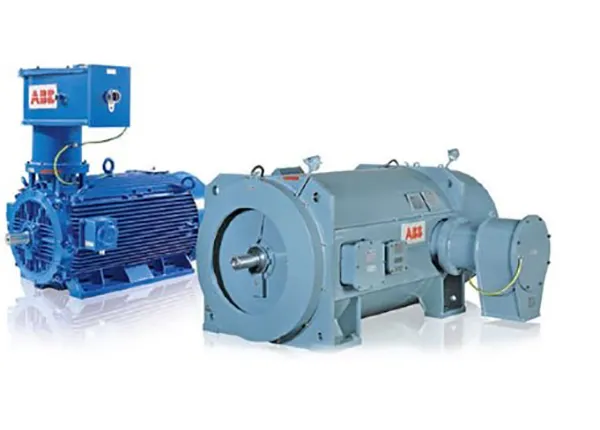

Totally enclosed, fan cooled high voltage motors, type of protection Ex d IIB/IIC, Ex de IIB/IIC
Output Power160 to 8000 kW
Frame SizeIEC 355 to 900
Number of Poles2 to 18
VoltagesLV – 11 kV
Frequency50 or 60 Hz
EnvironmentIP 55 as standard (higher on request)
ProtectionFor zone 1 or 2
