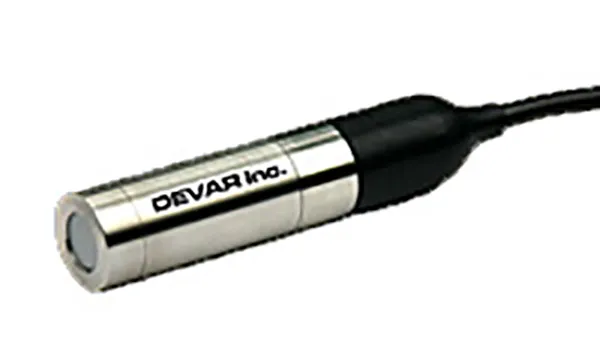

Level Transmitters Pressure Transducer
SPECIFICATIONS
2500 Series Accuracy
±0.25%
2500 Series Housing
Model 2501 Stainless Steel (Standard)
Model 2502 Titanium (Consult Factory)
2500 Series Range
0/5 PSIG
0/10 PSIG
0/15 PSIG
0/30 PSIG
0/50 PSIG
0/100 PSIG
*Custom Ranges Available (Consult Factory)
2500 Series Output
4/20 mA (2-wire Loop Powered Device)
2500 Series Cable Type
-PJVC Polyurethane-jacketed vented cable
-FEP Tefzel-jacketed vented cable
2500 Series Cable Length
Enter Length in feet (5' incr)
2500 Series Fittings
-PNC Ported Nose Cap (Delrin)
-5CM ½" NPT Electrical Conduit Fitting
-25PF ¼" NPT Process Fitting
2500 Series Options
-DM Desiccant Canister
-MP-11 Moisture Protection
