DEPRAG SCHULZ GMBH u. CO.

Sequence Controller AST30-31

• highest precision over the entire torque range
• torque control/angle monitoring
• angle control/torque monitoring
• friction coefficient defined screw joint
• 32 freely programmable sequences
• comprehensive analysis functions
• available communication ports: Ethernet, RS232, PLC-input/output, Profibus
• can be used in combination with DEPRAG feeders
• for manual and stationary applications

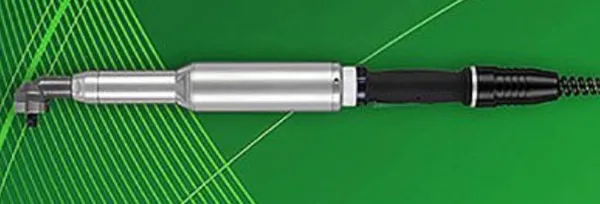

The AST30-31 sequence controller is the ideal controller to operate stationary and manual assemblies with the proven DEPRAG EC-Servo screwdrivers of the series MINIMAT-EC-Servo, in both inline- and angle-head design.

Operator friendly

The AST30-31 allows the free programming of your screwdriving sequences for stationary or handheld screwdriving tools.
If required, specific screwdriving programs can quickly and easily be set-up using the already existing basic program. Parameters can be input directly using the controller's keypad.
