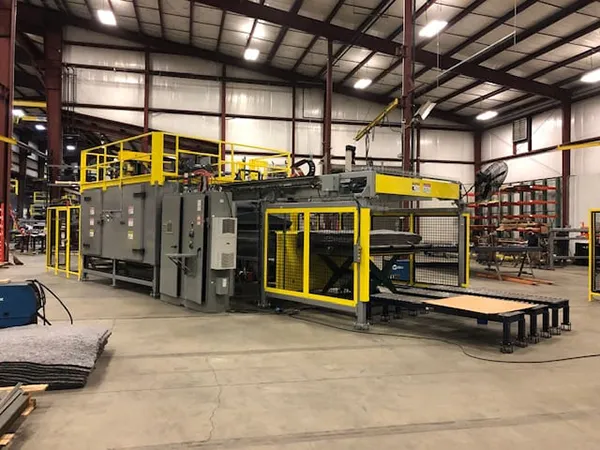

DTI-1414 Loft Oven
CUSTOMER DIRECTIVE
Our customer wanted to place the products on an indexing conveyor that would move the product into the heated chambers for process. The heated air in the Oven is forced through the insulation pad with a vertical down airflow. The airflow design provides efficiency in regards to process time and uniformity.
DESCRIPTION
The DTI-1414 provides a vertical down airflow to heat this particular product. The design velocity accounts for the pressure drop through the product to provide an efficient process. The systems conveyors provide a stable surface to support the product and is open to allow process air to flow freely through the product. The design of the conveyors allow the customer to load and unload product easily and the belts travel approximately 8 feet in just 6 seconds to move into and out of the heated chamber quickly. The oven system design does not required any special foundations or floor pits for installation. The oven and the transfer conveyor system are installed on an existing plant floor requiring no special modifications. The control system includes PLC control of the cart, ramp and soak temperature profile controls, starting sequence for all components and flame safety systems. All functions are controlled from the operator HMI (touch screen) and multiple recipes can be stored for future use for various product requirements. The entire system is fully assembled and factory tested for operational verification prior to shipment.
ALTERNATIVE CAPABILITIES
Davron Technologies, Inc. designs and manufactures ovens of this type to meet many unique process requirements, including but not limited to, the following:
SPECIFICATIONS
Product Being Processed
Insulated Pad Product, Material used in the Automotive Industry
Overall Length, Width, Height
49′-0″ L x 16′-0″ W x 12′-3″ H (14935mm x 4877mm x 3734mm)
Heated Chamber Length, Width, Height
13′-10″ L x 12′-0″ W x 5′-0″ H (4216mm x 3658mm x 1524mm)
Type of Heating System
Modulating Natural Gas Fired Burner
Design Operating Temperature
380°F – 450°F
Maximum Operating Temperature
500°F
Product Support
Indexing Pick and Place system for loading the product onto a fixed indexing conveyor. The product leaves the oven and travels to a transfer conveyor which delivers the product to a forming press.
Controls
PLC control with operator HMI, UL listed control enclosure
