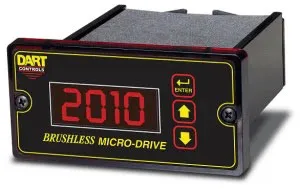

BLM700 Brushless DC Drive -Tachometer

BLM700 Brushless DC Drive -Tachometer

A compact, programmable brushless DC speed control with digital closed loop feedback and LED display for BLDC motors rated to 400 Watts.  Dart’s BLM700 Brushless Micro-Drive is the ultimate value in ENERGY EFFICIENCY, accuracy and control.

The Brushless Micro-Drive is simple to operate: set the desired RPM, rate, or time in the large 1/2″ LED display by depressing the “Up” and “Down” pushbuttons on the front panel. Settings can be one digit at a time or fast sweep. The settings are exact and repeatable. It will precisely control speed to ±1/2 RPM of set speed, long term. No calibrations of the control are necessary. Industry standard cutout dimensions of 1/8 DIN provide easy panel installation. All wiring connects directly to a rugged screw type terminal strip through the rear panel. The flexibility of Dart’s BLM700 Brushless Micro-Drive design makes it uniquely suited for many commercial and industrial applications.

• Microprocessor-based design
• Digital closed-loop algorithm accuracy of ±1/2 RPM of set speed or equivalent
• Non-volatile memory maintains drive settings on power loss
• Factory or field programmable via front-panel keypad
• Control profile settings include MIN and MAX speed, ACCEL, DECEL, display units, and more
• Programming lockout feature
• Transient voltage protection
• Self-contained power supply for speed pickups
• Large 4 digit, 1/2” LED display
• Durable NEMA 4X rated aluminum housing with Polycarbonate membrane and gasket
• Ambient temperature range of -10°C to 45°C
• Multiple operating modes including: Master, Rate Mode – Controls in rate unit such as RPM, Gallons per Minute, etc. Master, Time Mode –Controls in time unit such as HH:MM, MM:SS, SS:TT, or other unit
• 60 or 120 Hall Sensor spacing - jumper selectable
• Forward or Reverse rotation of motor is jumper selectable
