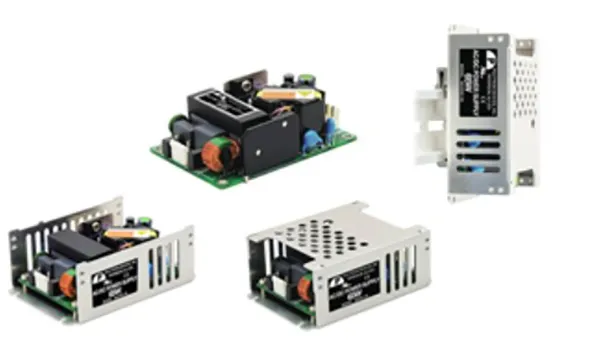

Polytron MUI65 Series AC-DC Converters-65 Watt Medical Universal Input Range
AC-DC converters meet medical safety approvals
With a universal input range and high efficiency up to 92%, our 65-watt MUI65 series of AC-DC converters for medical applications has an operating temperature range of -25 to 80°C, low leakage current under 75µA and a built-in EMI class A filter. This model also features an operating altitude of 5000M, 0.11 watt low standby power consumption and a 2000 VAC input to output 2 MOPP isolation. In addition, this model meets all UL, CE and ANSI/AAMI ES60602-2, EN60601-1 and IEC60601-1 safety standards.
FEATURES:
• Universal Input Range
• Operating Temperature Range: -25º to 80ºC
(with derating)
• Compact Package: 2.00” × 3.00” × 1.16”
• Mounting Options: Screw Terminal, Chassis Mount,
Din Rail, Open Type, Enclosed (Standard)
• High Efficiency: Up to 92%
• Active Power Factor Correction
• Low Leakage Current Under 75μA
• Built-in EMI Class A Filter
• 2000VAC Input to Output 2 MOPP Isolation
• Class I and Class II Protection
• Medical Safety Approvals: UL, CE and ANSI/AAMI
ES60601-1, EN60601-1 and IEC60601-1 3rd Edition
• RoHS Compliant to 2011/65/EU
• 0.11 Watt Low Standby Power Consumption
• Operating Altitude 5000M
