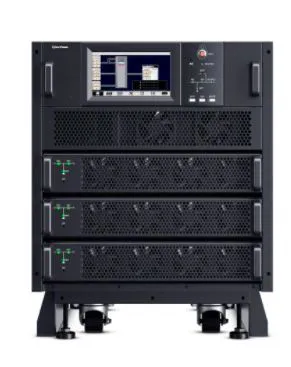

SMART APP ONLINE SM040KAMFA
SMART APP ONLINE
SMART APP ONLINE SM040KAMFA
Smart App Online 3-Phase Modular UPS System
- Capacity: 10-40 kVA / 10-40 kW
- Redundancy: (N+X)
- Power Factor (PF): 1.0
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 208/120V or 220/127V VAC Configurable
- Communication Ports: USB, Serial, Modbus, SNMP, EPO
- Management Software: PowerPanel® Business
- Energy Saving: ECO Mode Efficiency >97.5%
- Warranty: 1 year
Product Overview
The CyberPower SM040KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.
The SM040KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7” color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM040KAMFA 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.
Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
Full Matrix LCD Touch Screen
Simple to set up, the user-friendly 7” color touchscreen display provides key status indicators at-a-glance with alerts of potential problems that could impact equipment and cause downtime. Screen tilts up to 22 degrees for easy viewing.
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.
N+N Redundancy
Ensures uninterrupted operation if the entire system fails. N+1 redundancy guarantees system availability if one power module fails.
Expandable External Battery Cabinet
Extends runtime by adding space for additional battery modules.
Smart Battery Mangement
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
PowerPanel® Business Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.
RMCARD205
Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.Optional Input and Output 175A Circuit Breakers
Ensures power is turned off during service or maintenance and eliminates the risk of unintended powering off.
Upgradable UPS Firmware
Keeps equipment running by eliminating downtime during UPS power maintenance.
Multiple Language Options
The LCD Control Panel can be configured in English or Chinese.
Emergency Power Off (EPO)
Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Generator Compatible
Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter Mode
Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
USB, Serial, Modbus, and SNMP Connectivity
Flexible connectivity to use PowerPanel software, Modbus, or a RMCARD205 to monitor and manage your Smart App Online 3-Phase Modular UPS.
Audible Alarms
Identifies when the UPS is running on battery power, overloaded, or has a low battery.
Customizable Configuration
The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack.
One-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase UPS installation. See warranty for details.
