Solenoid Valve SV0017

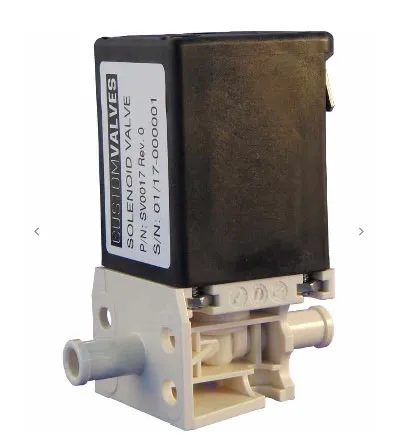

Solenoid Valve SV0017

Custom Valves designed the SV0017 valve to mix dialysate fluid and control the fluid removal from the patient in hemodialysis machines. The valve body has two ports that connect to a silicone tube.

The following features provide superior benefits in hemodialysis machines compared to other valves on the market:

• PPSU valve bodies have better thermal and chemical resistance in comparison to PEI, which plays a role i.e., regarding risk of tension cracks
• PTFE bellows are maintenance-free and offer longer dialysis machine lifetimes than rubber bellows used in many machines.
• ISO 10993 certified (not only cytotoxicity), Rohs, and REACH compatibility.
• Designed for worst-case temperatures (T_ambient = 80°C while maintaining a 100% duty cycle).
• Bidirectional flow.
• Standard voltage is 24 VDC – other voltages are available.
• Greater than 3 bar pressure is possible depending on the application.
