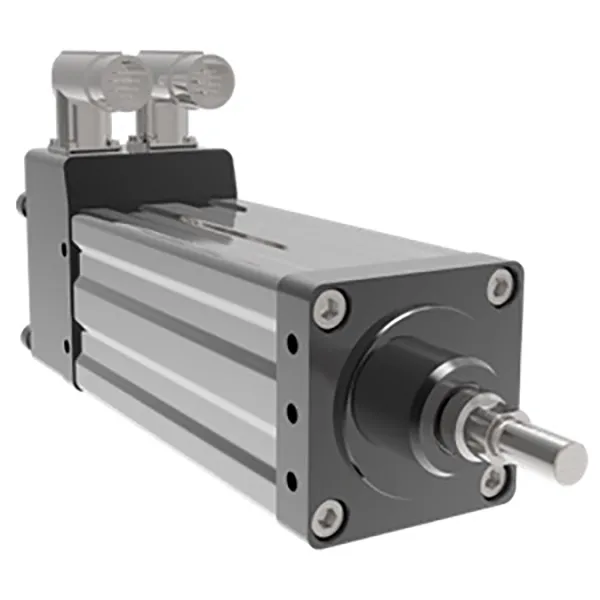

GTX Series

GTX Series

GTX Series

Integrated Motor / Actuator

  • Superior hydraulic cylinder replacement
  • Continuous force up to 15,392 N (3,460 lbf)
  • Speeds up to 1,270 mm/sec (50.0 in/sec)
  • Standard stroke lengths: 80 mm (3.15 in), 100 mm (3.94 in), 150 mm (6 in), 300 mm (12 in), 450 mm (18 in)
  • Standard voltage classes: 460 Vrms Max, 48 VDC Max
  • Modular mounting hardware

HIGH PERFORMANCE AND POWER, LONG LIFE IN A COMPACT PACKAGE

GTX Series integrated motor / actuators offer up to 15X the life and 3X the power density of conventional ball screw electric actuators. Integrating our unique inverted roller screw and T-LAM brushless servo motor technologies delivers the programmability and precision of electric actuators combined with the high power density and rugged durability of hydraulics, all in a compact package that is similar in form factor to a hydraulic cylinder.

BENEFITS

  • Programmability and precision of electric actuators
  • Power density, durability and form factor of hydraulic actuators
  • Seamless integration with most leading global servo drive and robot controller brands
  • Environmentally sealed for use in harsh industrial environments
  • Standard configurations delivered in 20 business days

Quick Data

Models:

GTX060, GTX080, GTX100

Frame Sizes:

60 mm (2.36 in), 80 mm (3.15 in), 100 mm (3.9 in)

Stroke Lengths:

GTX060: 80, 150, 300 mm (3.15, 6, 12 in)GTX080: 100, 150, 300, 450 mm (3.94, 6, 12, 18 in)GTX100: 150, 300 mm (6, 12 in)

Screw Lead:

GTX060: 2.54, 5.08, 10.16 mm (0.1, 0.2, 0.4 in)GTX080, GTX100: 2.54, 5.08, 12.70 mm (0.1, 0.2, 0.5 in)

Linear Speed:

Up to 1,270 mm/sec (50.0 in/sec)

Continuous Thrust Capacity:

15,392 N (3,460 lbf)

Standard/Rating:

CE and UL Certifications, UL Class 180H insulation, IP66S
