Curtis Industries

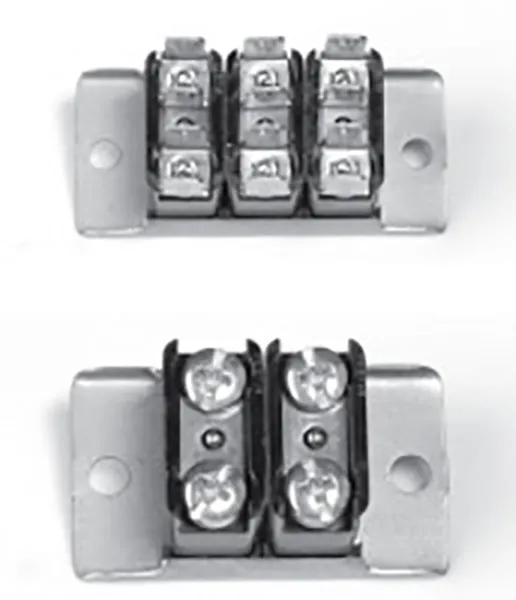

Series M

Series M

• Compact Modular Design for Low Power Circuits – Suitable for surface connection applications using channel assembled modular construction.
• All-Surface Mountability – Requires no additional insulation. Electro tin-coated steel mounting channel has two .196″ diameter mounting holes.
• Thermo-Set Phenolic Barrier-Type Terminal Blocks – One thru 24 terminals are on 1/2″ center-to-center spacing.
• Broad Choice of Terminal Connections – Available in three screw designs and two .250″ wide quick-connect variations offering up to four connections per terminal.
• Wire Sizes – Series M (No. 6-32 screw) is UL recognized for No. 22AWG to No. 14 AWG. MA Series (No. 8-32 screw) is UL recognized for No. 22AWG to No. 12AWG. CSA requires lugs on wire larger than No. 14AWG for series MA, and CSA requires lugs on No. 16AWG for Series M. Marking tabs are available for circuit identification.
• Current/Voltage Rating – MA Series 25 amps/300 volts, M Series 15 amps/300 volts.
